Description:

• Light Source: Infrared VCSEL structured light*
• Point Distance: 0.1 mm ~ 3 mm
• Effective Working Distance: 160 mm ~ 1400 mm
• Optimal Working Distance: 400 mm
• FOV (Under Optimal Work Distance): 434 mm x 379 mm
• Scan Rate: Up to 14 fps
• Data Alignment Mode: Texture/ Feature/ Hybrid Alignment/ Global Markers**

• Full Colour Scanning:  Yes
• Outdoor Scanning: Yes
• Output Formats: OBJ, STL, PLY, ASC, 3MF, P3

• Scanner Weight: 0.5 kg

• Scanner Dimensions: 220 mm x 46 mm x 55 mm
• Carrying Case Dimensions: 245 mm x 245 mm x 90 mm
• Interface: USB 2.0 or above
• Supported OS: Windows 10/11 64-bit***

*Einstar infrared light source, certificated as Class 1 laser product, is safe under all conditions of normal use.

**Global Markers alignment is only available in Object Scan Mode

***Einstar requires a Computer with a NIVIDA graphics card

Go Ahead with Einstar!

SHINING 3D's mission is to make 3D technology accessible to everybody. Einstar is SHINING 3D's most affordable 3D scanner ever! You can digitize the world around you like never before! Einstar can easily capture stable and clear details at a fast pace with high quality data outputs. Start 3D scanning at ease today with Einstar.

What's Included

• EinStar Handheld 3D Scanner
• EinStar Exstar Software (Pre-Installed)
• Carrying Case
• Carrying Strap
• Positioning Markers
• Calibration Board
• Power Adapter
• Power Supply
• USB Cable
• Silicone Case
• Einstar User Guide
• Lens Cleaning Cloth

A Variety of Applications

The Shining3D Einstar Handheld 3D Scanner supports multiple data format outputs and is compatible with 3D printers and 3D design softwares.

High-Quality Data

Easily collect high density point cloud data fast and reliably with a point distance of up to 0.1mm.

High Colour Fidelity

Benefit from the Einstar's built-in RGB color camera. The high quality RGB Colour Camera allows for 3D data to be collected with authentic colors.

Detail-Oriented Enhancement Technology

The Einstar has built-in detail enhancement technology, which will optimize the point cloud for complete data acquisition.

Streamlined User Experience

This machine benefits from a smooth and fast experience, with a scanning speed of up to 14 FPS. It will also Smart Track performance, and uses an intelligent algorithm for automatic alignment.

Stable Outdoor Scanning

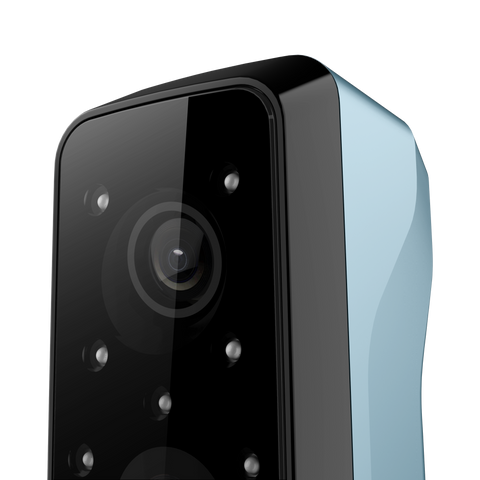

Equipped with 3 Infrared VCSEL Projectors, 2 Stereo Depth Cameras and 1 RGB Camera, the Einstar can capture clear scan data and generate stable scans while outdoors. Provide a flexible working distance for small and large objects.

Extremely Easy to Use

The Einstar's highly ergonomic design allows for ease of use. It is easy to set up and is a plug & play machine. The Einstar streamlines your workflow and post processing, and only needs 1 USB cable for transmission and power.

Comfortable for Eyes, easy to scan Hair

The Einstar's infrared laser makes the scanning process much easier for the subject. There is no light projected during the scanning process, making it easy on the eyes! There is also a new "hair mode" option which can be used to easily and quickly scan fabrics or even human hair!
